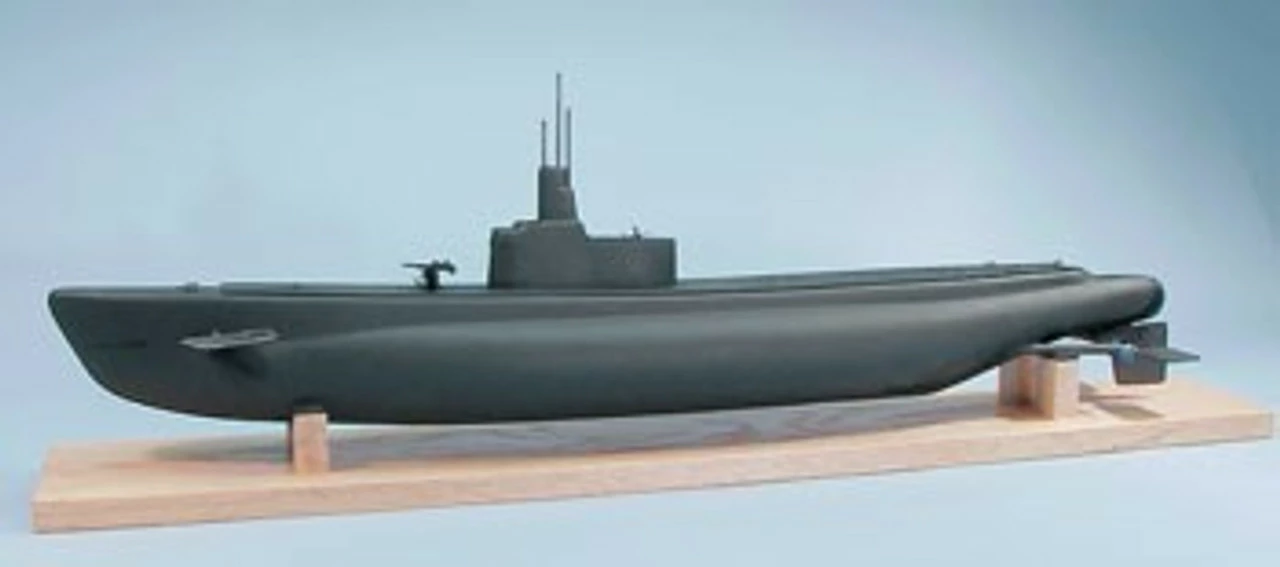

DUM1245 Dumas USS Bluefish Submarine Kit

DUM1245 Dumas USS Bluefish Submarine Kit

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING



Features:

Performed ABS plastic parts
Drive line hardware kit included
Step-by-step plans and instructions
Decals

Includes:

Two 4.8V electric motors
One instruction manual
One set of plans (blueprints)
Vacuum formed hull, deck and motor mount
Vacuum formed sails (1/96-scale), and yes all submarines have sails.
One stiff paper pattern
One clear plastic (.020″ for rudder, forward & rear dive planes)
One decal set

Requires:

1- 3-channel radio (Minimum)
1- 7.2V battery
1- Battery charger for 7.2V battery
1- Electronic Speed Control
1- Hobby knife (No. 11 and No. 16 blades)
1- Duco cement (see COMMENTS)
1- Pro thin CA glue
1- Pro thick CA glue
1- Pro CA activator
1- 12″ ruler  (is an 18″ modeler ruler)
1- Silicone, non-corrosive Ultra-Gray RTV (see COMMENTS)
1- Polyester resin (purchase at automotive store)
1- Sandpaper (60-80 grit), Medium-(100-120 grit), Fine-(220-440 grit)
1- Paint brush (1/4″, 1″)
1- Acetone (purchase at hardware store)
1- Clamp set
1- File, 1/4″ diameter
1- 24″ long straight edge
1- Can polyester glazing putty (Bondo)(purchase at automotive store)
1- Soldering iron
1- Harris Stay Bright Solder
1- 3/4″ wide masking tape
1- Drill bit set (1/32nd (No.67) through, 1/2″ diameter)
1- White lithium grease
1- Buckshot (No.4, .240-Diameter)(no more than 5 lbs)
(purchase at gun supply store)
1- Petroleum jelly (tube, Not a jar)
Clothes Pins

Technical Specifications:

Length: 33″ (838mm)
Beam: 4″ (102mm)
Height: 3-1/2″ (89mm) (from top of deck to bottom of submarine)
Weight: 5 lbs (2268g) ready-to-run
